Using Display Mode Switch

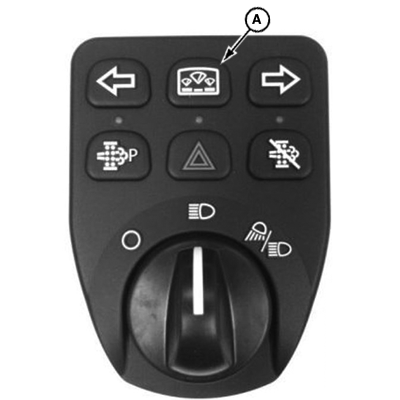

LV18362-UN-17JUL13

A - Display Mode Switch

The display mode switch (A) can be used to scroll through hour meter and active error codes display on all machines. The automatic switch of display information will happen as long as the display mode switch is pressed in the current cycle.

By intermittently pressing the display mode switch you can scroll through the functions in the following order.

1. Engine hour meter
2. Ground speed
3. Vehicle hour
4. PTO hour
5. Soot percentage (4066 only)
6. Hour since last regeneration (4066 only)

Press the display mode switch to return to engine hour meter.
