Using Cruise Control—If Equipped


Using Cruise Control

CAUTION: Avoid injury! Use cruise control only in large, open areas. Shut off before turning or when in areas with many obstacles.

NOTE: The cruise control is only operational when the machine is traveling forward.

Engaging Cruise Control

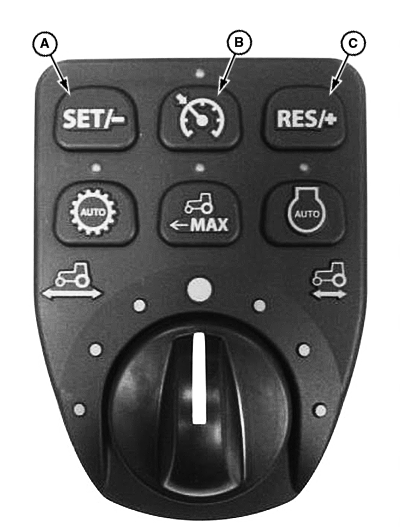

  1. LV17526
    LV17526-UN-19APR13

    A - Cruise Control Set Switch

    B - Cruise Control Activation Switch

    C - Cruise Control Resume Switch

    Depress forward travel pedal until desired travel speed is reached.
  2. Press cruise control activation switch (B).
  3. Press cruise control set switch (A).
  4. Release forward travel pedal.
  5. To increase travel speed or to resume travel speed, press cruise control resume switch (C).
  6. To decrease travel speed press cruise control decel switch (A).

Disengaging Cruise Control

NOTE: The machine will stop if cruise control is disengaged while the machine is in motion. To maintain forward motion, depress the forward travel pedal before disengaging cruise control.

Press cruise control activation switch (B), or depress the brake pedal.


Using Cruise Control (With Standard Cruise Control Option)

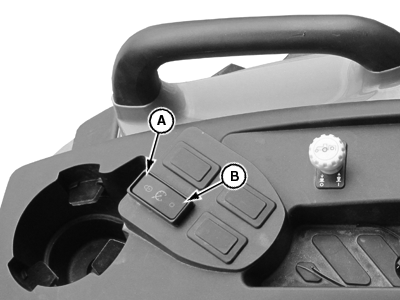

LV18381
LV18381-UN-16JUL13

A - Top of Cruise Control Switch

B - Bottom of Cruise Control Switch

CAUTION: Avoid injury! Use cruise control only in large, open areas. Shut off before turning or when in areas with many obstacles.

NOTE: The cruise control is only operational when the machine is traveling forward.

Engaging Cruise Control

  1. Depress forward travel pedal until desired travel speed is reached.

  2. Fully depress top of cruise control switch (A) to engage cruise control.

    • Instrument panel cruise control indicator light will illuminate when cruise control is activated.

  3. Press reverse travel pedal.

  4. To adjust travel speed, disengage cruise control and engage cruise control again at a different speed.

Disengaging Cruise Control

NOTE: The machine will stop if cruise control is disengaged while the machine is in motion. To maintain forward motion, depress the forward travel pedal before disengaging cruise control.

  • Fully depress bottom of cruise control switch (B).
  • Depress the brake pedal.

Instrument panel cruise control indicator light should go out when the cruise control is disengaged.

KN52281,1004A76-19-20131105
