Using Hitch Assist—If Equipped

Activating Hitch Assist

NOTE: PTO must be off.

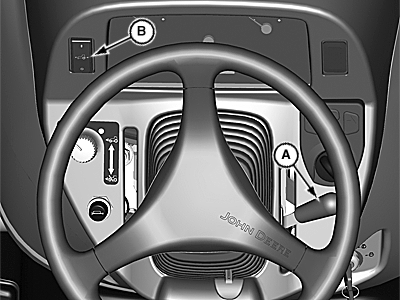

LV19325-UN-08OCT13

Cab

LV18427-UN-19JUL13

Open Operator Station

LV18361-UN-16JUL13

A - Engine Speed Hand Throttle

B - Hitch Assist Switch

C - Park Brake

D - Transmission Range Shift Lever

1. Sit on operator seat with the engine running.

2. Engine speed hand throttle (A) must be at low range.

3. Fully engage park brake (C) when fully engaged the park brake light on the instrument panel starts to blink.

4. Transmission range shift lever (D) must be in A“range”.

5. Engage hitch assist switch (B) an amber light will begin to flash when feature is active.

   NOTE: Interlock missing will be displayed on ICC when hitch assist switch is engaged.

   If the instrument panel shows A “range” then you need to shift into A“range”.

6. When the operator gets out of the seat 5 audible beeps signaling that hitch assist is engaged will sound and the warning lights will flash at low frequency.

Operating Hitch Assist

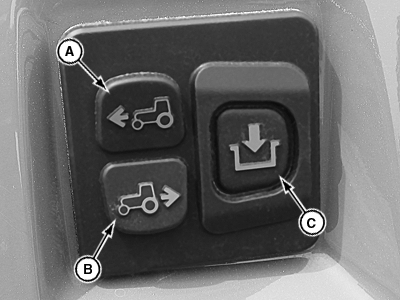

LV18008-UN-17JUL13

A - Forward Switch

B - Reverse Switch

C - Hitch Engagement Switch

Press forward switch (A) or reverse switch (B) while holding the hitch engagement switch (C).

Disabling Hitch Switch

The rear controls can be disabled three different ways.

•Sitting on the seat.

•Turning off the hitch switch.

•Any change in interlock state.

NOTE: To resume normal operation, hitch assist switch in the operators station must be turned off.

Using Auxiliary Rockshaft Control Knob

NOTE: Rockshaft control knob is used for raising or lowering rockshaft to attach equipment when using the hitch assist.

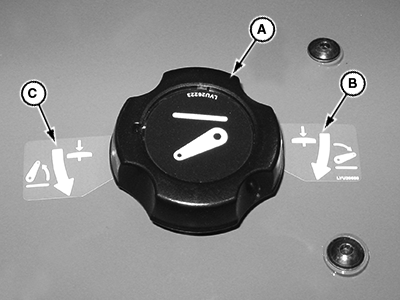

LV18003-UN-05JUN13

OOS Shown; Cab Is Similar

A - Auxiliary Rockshaft Control Knob

B - Lower Rockshaft

C - Raise Rockshaft

1. Press down on auxiliary rockshaft control knob (A).

   • Turn rockshaft control knob clockwise to lower rockshaft (B).

   • Turn rockshaft control knob counterclockwise to raise rockshaft (C).

2. Release knob when correct positioning is achieved.
