Cab Classification According to EN 15695-1 (when Applying Plant Protection Products and Liquid Fertilizers)

LV19608-UN-01NOV13

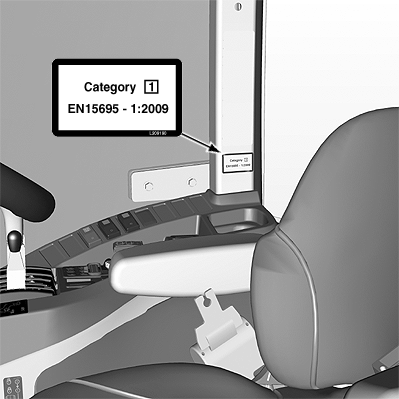

Label shown is an example and may not indicate the actual location in the cab or the actual category of the cab fitted to the machine

Cab classification according to EN 15695-1 provides information on the effectiveness of protection against harmful substances offered by the cab.

Categories 1 to 4 are used for classification and specified on a label inside the cab.

Replace label if missing or damaged. See your John Deere dealer.

Category 1 — The cab does not offer any protection against substances which are harmful to health.

Category 2 — The cab offers protection against solid airborne particles such as dust, but not against aerosols and vapors.

Category 3 — The cab offers protection against dust and aerosols (liquid airborne substances such as spray), but not against vapors.

Category 4 — The cab offers protection against dust, aerosols and vapors.

CAUTION: Before working in an environment containing hazardous substances, i.e. when using pesticides, check whether the cab offers sufficient protection. Refer to the product data sheets of the spraying liquid manufacturer specifying the category required for the cab.

CAUTION: In case of category 3 and 4 cabs, find out whether the installed filters have been checked according to EN 156952: 2009 and whether they are suitable for the chemical being used (refer to the manufacturer’s information) before working in an environment containing hazardous substances.

CAUTION: The cab air filters must be serviced as specified. See Section Lubrication and Periodic Service or Service As Required and Service Once a Year in this Operator’s Manual.

CAUTION: Refer to product data sheets and product identification of the crop protection chemicals. These contain important information on how to avoid hazards.

The following requirements must be met to offer best protection:

1. All seals (on door, windows and roof) in good condition
2. Doors, windows and roof closed
3. Grommets for cables in the cab sealed properly
4. Fan ON
5. Cab air filters in good condition
