Front Loader Installation

Right-Hand Side Mounting Frame

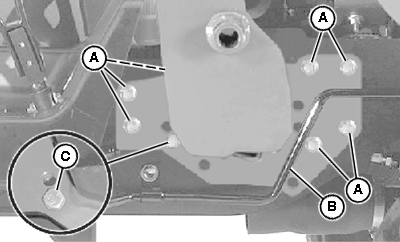

LVAL38994-UN-06NOV12

A - Seven Flange Head Cap Screws

B - Oil Line

C - One Cap Screw

Install right-hand side mounting frame on tractor behind oil line (B), and fasten using seven flange head cap screws (A) and one cap screw (C) as shown.

Tighten mounting hardware and torque to 120 N•m (90 lb-ft).

Left-Hand Side Mounting Frame

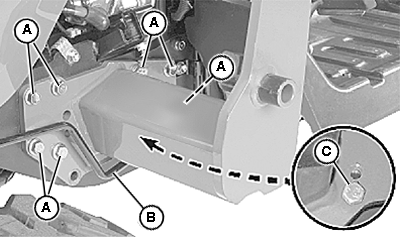

LVAL38995-UN-06NOV12

A - Seven Flange Head Cap Screws

B - Oil Line

C - One Cap Screw

Install left-hand side mounting frame on tractor behind oil line (B), and fasten using seven flange head cap screws (A) and one cap screw (C) as shown.

Tighten mounting hardware and torque to 120 N•m (90 lb-ft).

Hardware	Flange Screw	Cap Screw
Quantity	7 per side	1 per side
Drive Size / width across flats	18mm	18mm
Standard	JDS123	ISO4017
Thread	M12	M12
Length	35mm	35mm
Grade	10.9	10.9
