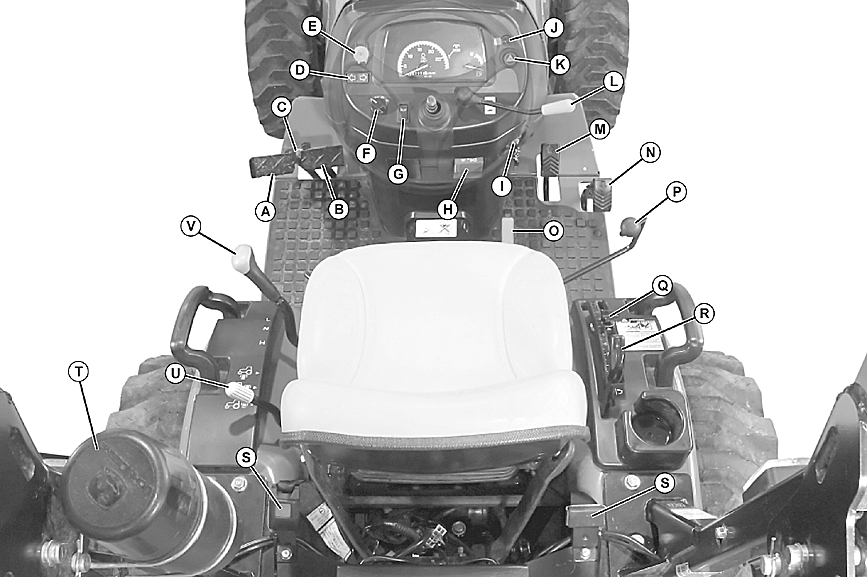

Operator Station Controls

LVAL38973-UN-06NOV12

2032R shown. 2025R and 2027R similar.

A - Left Turn Brake Pedal

B - Right Turn Brake Pedal

C - Brake Pedal Latch

D - Turn Signal Switch

E - Power Take Off/Reverse Implement Option (PTO/RIO)Switch

F - Light Control Switch

G - Horn Switch

H - Cruise Control Lever

I - Ignition Key Switch

J - Work Light Switch

K - Hazard Light Switch

L - Engine Speed Hand Throttle

M - Forward Travel Pedal

N - Reverse Travel Pedal

O - Park Brake Lever

P - Dual Selective Control Valve (SCV) Lever

Q - Rockshaft Adjustable Depth Stop Knob

R - Rockshaft Control Lever

S - Seat Belt

T - OM / Document Storage Canister

U - Power Take Off (PTO) Selector Lever

V - Transmission Range Shift Lever
