Floor Panel Controls

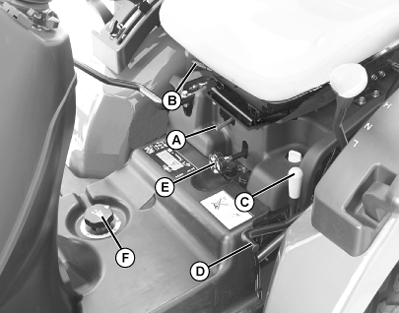

2025R

LVAL38463-UN-18SEP12

A - Selective Control Valve (SCV) Lock

B - Operator Seat Adjustment Lever

C - Mechanical Front Wheel Drive (MFWD) Control Lever

D - Differential Lock Pedal

E - Rockshaft Rate-of-Drop Control Knob

F - Mower Height Control Knob

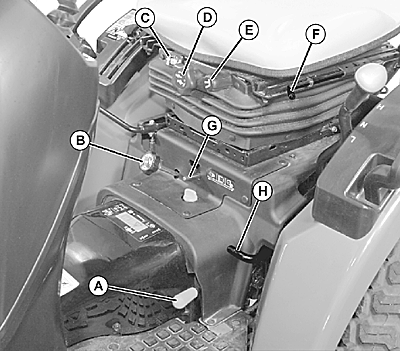

2027R, 2032R

LVAL38974-UN-06NOV12

A - Mechanical Front Wheel Drive (MFWD) Control Lever

B - Rockshaft Rate-of-Drop Control Knob

C - Seat Weight Adjustment Indicator

D - Seat Weight Adjustment Knob

E - Seat Height Limit Adjustment Knob

F - Seat Adjustment Level-Front/Back

G - Selective Control Valve (SCV) Lock Lever

H - Differential Lock Lever
