Adjusting Seat

  1. Sit on seat.

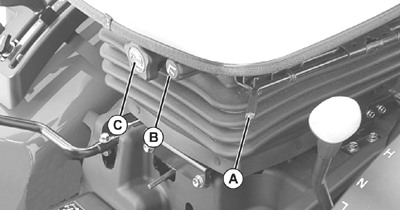

  2. LVAL38976
    LVAL38976-UN-06NOV12

    A - Seat Lever

    B - Seat level Knob

    C - suspension travel knob

    Lift seat lever (A) up to unlock seat position.


  3. Slide seat forward or rearward to desired position where all controls can be easily reached.

  4. Release lever to lock seat in position.

  5. To adjust level of seat, turn knob (B) clockwise to tilt seat angle slightly forward or counterclockwise to tilt seat slightly rearward - for desired comfort level.


Adjusting Seat For Operator Weight

• Turn knob (C) clockwise or counterclockwise to reach desired suspension travel for operator weight. Suspension should not bottom out when properly adjusted.
