Using Park Brake

Locking Park Brake:

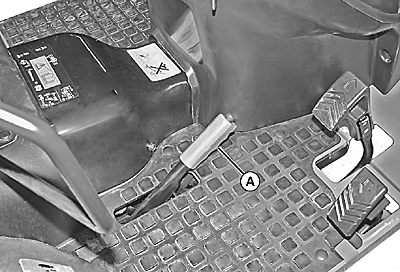

LVAL38980-UN-06NOV12

A - Park Brake Handle

CAUTION: Always lock park brake and move transmission range shift lever to a position other than N (neutral) before leaving machine unattended. Transmissions will not prevent machine motion without the park brake locked.

Pull park brake handle (A) completely up to the locked position. The park brake light should illuminate.

Unlocking Park Brake:

Press release button on top of handle and push park brake handle (A) down to the unlocked position.
