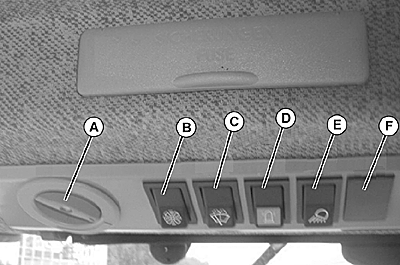

Operating Cab (If Equipped)

LVAL38993-UN-06NOV12

A - Temperature Control (For Heater) - Turn this control clockwise to turn down heat and counterclockwise to turn up heat.

B - Fan Switch - This switch turns on the fan.

C - Windshield Wiper Switch - This switch turns on the windshield wiper.

D - Beacon Light Switch - This switch turns on the beacon light.

E - Front Work Light Switch - This switch turns on the front work lights.

F - Rear Work Light Switch (Optional Kit) - This switch turns on the rear work light (optional kit).
