Replacing Headlight Bulb (2025R)

CAUTION: Halogen light bulb contains gas under pressure. The bulb may shatter if the glass is scratched or dropped. Wear eye protection and handle bulb with care when replacing.

  1. Park machine safely. (See Parking Safely in Safety Section.)

  2. Raise hood.

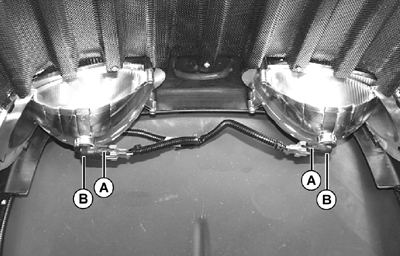

  3. LVAL38561
    LVAL38561-UN-20SEP12

    A - Wire Harness

    B - Bulb Assembly

    Disconnect wire harness (A) from defective headlight bulb assembly.


  4. Rotate bulb assembly (B) to remove from housing socket.

  5. NOTE: Do not touch the new bulb assembly with bare hands. Use a clean cloth to install, and hold the bulb only by the connector.

    Install new bulb assembly into housing socket and rotate to lock in place.

  6. Connect wire harness to bulb assembly.

  7. Check operation of headlights.

  8. Lower hood.

OUO1082,0005D24-19-20121107
