Replacing Fuses (2025R)


Main System Fuse

IMPORTANT: The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same amp rating.

  1. Park machine safely. (See Parking Safely in Safety Section.)

  2. Raise hood.

  3. Location

    Circuit

    Fuse Size

    A

    Main System

    40 amp

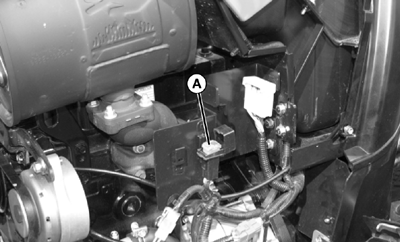

    LVAL38567
    LVAL38567-UN-20SEP12

    A - Main System Fuse

    Open main system fuse assembly cover, and remove fuse (A).


  4. Install new fuse assembly and close assembly cover.

  5. Lower hood.


Accessory Fuses

IMPORTANT:

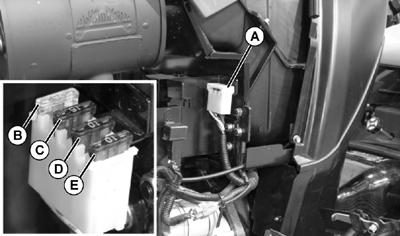

LVAL38568
LVAL38568-UN-20SEP12

The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same amp rating.

  1. Park machine safely. (See Parking Safely in Safety Section.)

  2. Raise hood.

  3. Squeeze ends of fuse holder cover (A) to remove.

  4. Identify fuses:

    Location

    Circuit

    Fuse Size

    A

    Fuse Holder Cover

    40 amp

    B

    Headlight and Taillight Lamps

    25 amp

    C

    Engine, Glow Plugs and Starter

    15 amp

    D

    Work lamps

    10 amp

    E

    Turn/Warning Lamps

    10 amp

  5. Pull defective fuse from socket.

  6. Push new fuse into socket.

  7. Install fuse holder cover.

  8. Lower hood.
