Using Dual Selective Control Valve (SCV) Lock Lever

Tractor without Cab

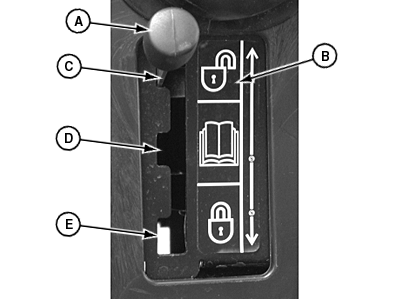

LV17736-UN-09MAY13

A - Selective Control Valve Lock Lever

B - Lock Lever Label

C - Top Position

D - Middle Position

E - Bottom Position

Selective control valve (SCV) lock lever (A) allows the operator to control the type of dual SCV lever movement needed for a particular operation or situation. Operation of the lock lever is indicated on lock lever label (B).

• To allow movement of dual SCV lever in all directions, move lock lever to the top position (C). Operation of the dual SCV is totally unlocked.
• To prohibit engagement of the regen (regeneration) function of the dual SCV, move lock lever to the middle position (D). This position is recommended for all implements except for the front loader. Heavily loaded loader buckets will dump more rapidly when the regen function is engaged. The regen function is available only with the lock lever in top position C.
• To prohibit movement of dual SCV lever in all directions, move lock lever to the bottom position (E). Operation of the dual SCV is totally locked.

Tractor with Cab

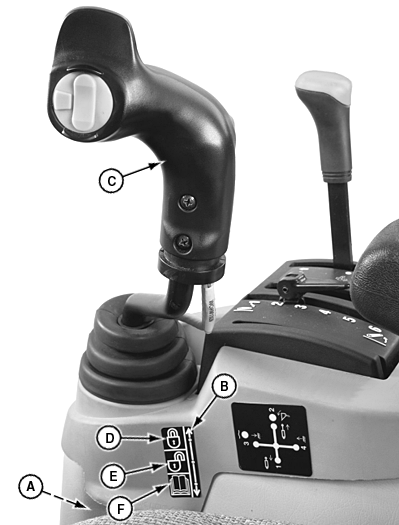

LV17737-UN-09MAY13

SCV Lever Shown with Optional Rear Outlet SCV control switch

A - Selective Control Valve Lock Lever

B - Lock Lever Label

C - Selective Control Valve Lever

D - Top Position

E - Center Position

F - Bottom Position

Selective control valve (SCV) lock lever (A) allows the operator to control the type of dual SCV lever movement needed for a particular operation or situation. Operation of the lock lever is indicated on lock lever label (B).

• To prohibit movement of dual SCV lever in all directions, make sure SCV lever (C) is in center position, and move the lock lever to the top position (D). Operation of the dual SCV is totally locked.
• To allow movement of dual SCV lever in all directions, move the lock lever to the center position (E). Operation of the dual SCV is totally unlocked.
• To prohibit engagement of the regen (regeneration) function of the dual SCV, move the lock to the bottom position (F). This position is recommended for all implements except for the front loader. Heavily-loaded loader buckets will dump more rapidly when the regen function is engaged.

NOTE: After extended use, the dual SCV lever may require cable adjustment to lock out.
