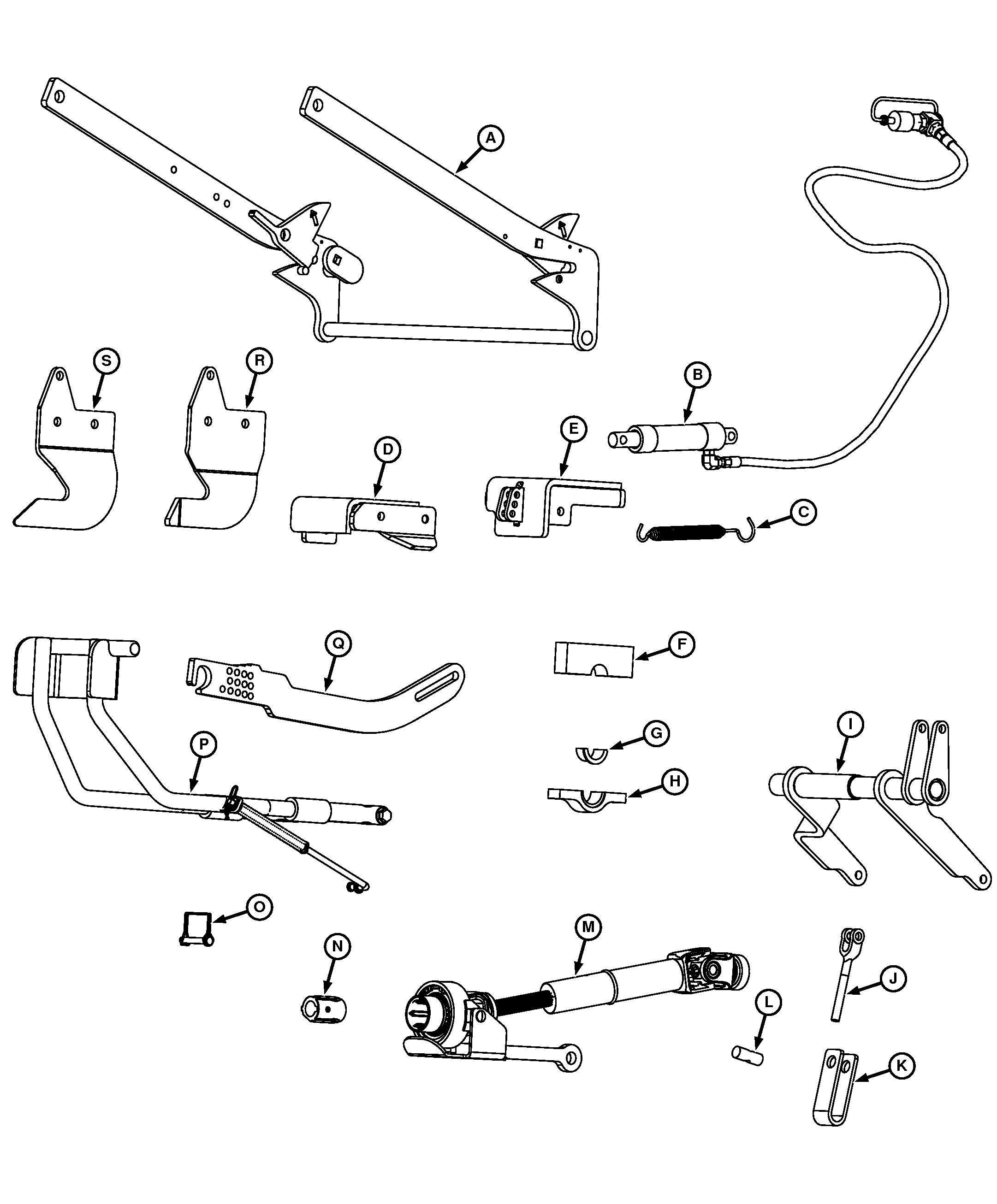

Parts in Lift Kit

NOTE: Some parts are installed on tractor, and others are installed on mower.

LV18642-UN-20AUG13

Parts in Kit

Qty	Description
1	Rear Lift Link (A)
1	Cylinder (B)
1	Spring (C)
1	Right Bracket (D)
1	Left Bracket (E)
2	Block Clamp (F)
2	Rockshaft Bushing (G)
2	Half Clamp (H)
1	Mid Rockshaft (I)
2	Adjustable Yoke (J)
2	U-Bracket (K)
2	Link Pin (L)
1	Bearing Assembly (M)
1	**Coupler, Male (N)
2	Snap Lock Pin Assembly (O)
1	**Forward Lift Link (P)
1	Height Adjust Link (Q)
1	Left Hanger (R)
1	Right Hanger (S)
1	**Set Screw, M8x8
2	Clevis
2	Drilled Pin
6*	Flange Head Bolt, M12x65
6*	Flange Head Bolt, M12x45
12	Locknut, M12
1	Hex Socket Head Bolt, M12x30
3	Hex Head Bolt, M12x30
4	Hex Head Bolt, M12x90
1	Pin, Cylinder to Rockshaft
1	Clevis Pin, M12x70
4	Washer, 1/2
3	Cotter Pin
4	Bushing
4	Flange Head Bolt, M12x50
2	Drilled Pin, M12x35
2	Locking Ring

* Quantity used will depend on tractor with grille guard application.

** Parts will be installed on mower deck.
