Install Wheels

1. NOTE: 60D mower includes two offset wheels which are to be installed on right side of mower; 72D mower wheels are all the same.

   CAUTION: Machine component or attachment is heavy. Use a safe lifting device with correct load capacity rating to lift, install or remove component or attachment.

   Remove mower from crate using chain hoist or other suitable device.

2. 60D Mower only:

   1.

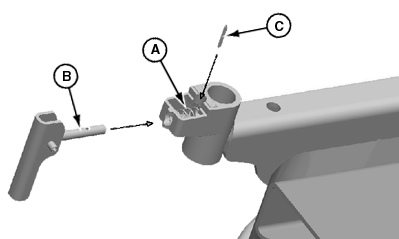

      LV18654-UN-20AUG13

      60D mower left rear wheel area shown.

      A - Spring

      B - Lock Assembly

      C - Roll Pin

      Install spring (A) in bracket as shown.

   2. Push wheel lock assembly (B) into bracket.

   3. Install roll pin (C) to secure wheel lock assembly.

3. NOTE: After wheels are installed, it may be necessary to lock wheels by pressing downward on handles (A) until they are perpendicular to ground. However, wheels must be in the unlocked position before installing mower on tractor.


   LV18655-UN-20AUG13

   60D mower offset wheels shown installed on right side of mower

   A - Handles

   B - Wheels

   C - Spring Pin

   Install wheels (B) by sliding wheel shaft up through wheel bracket.

---




4. Install spring pin (C) in each wheel.
