Install Discharge Chute

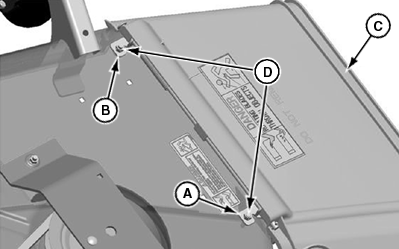

  1. LV18656
    LV18656-UN-20AUG13

    72 Mower Shown

    A - Rear Hinge

    B - Front Hinge

    C - Chute Assembly

    D - Nuts

    Attach rear hinge (A) to deck with nut. Do not tighten.


  2. Pre-load spring with one hand and attach front hinge (B) to deck with nut. Do not tighten.

  3. Pull chute assembly (C) away from deck as nuts (D) are tightened to help align hinges.

UP00731,0000052-19-20130826
