Install Forward Lift Link on Mower Deck

1.
   LV18657-UN-20AUG13

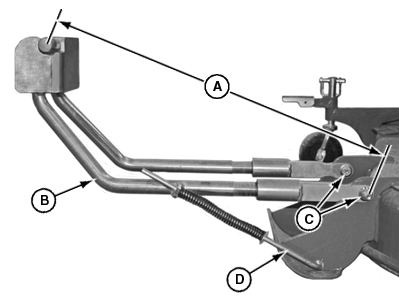

   A - Distance from center of horizontal frame to center of bolt

   B - Forward lift link

   C - lock nuts

   D - rod

   Measure distance (A) from center of horizontal frame to center of bolt. Distance (A) should be 599 mm (23.6 in.).

---




2. Secure forward lift link (B) to mower deck with two M12x50 flange head bolts and two locknuts (C). Adjust as necessary to obtain correct distance before tightening locknuts completely.

3. Insert end of rod (D) in slot with front link raised so spring is fully extended.

4.
   LV18658-UN-20AUG13

   Tractors with loaders installed

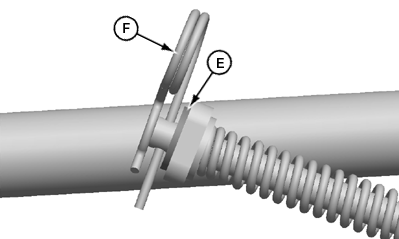

   E - Washers

   F - Hair pin

   Tractors with loader installed: Loader components may hit forward link when removing mower. During initial set up, add washers (E) as needed to prevent contact with loader componenets.

   1. Remove hair pin (F) from top of rod.

   2. Add washers (E) as needed to prevent contact with loader components.

   3. Install hair pin.

---
