Assemble Rear Lift Link

1. NOTE: If installing kit on tractor with cab, a lock (A) and roll pin (B) must be ordered separately.

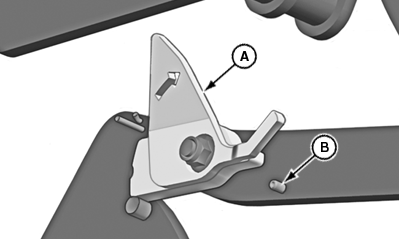

   LV18659-UN-20AUG13

   Image shown from inside of rear lift link. Lock is shown in the install / locked position.

   A - Lock

   B - Roll Pin

   Tractors with cab: Replace lock on left side of rear link with new lock (A). Push roll pin (B) in from outside of rear lift link. Roll pin should clear sheet metal tab on new lock.

---




2.
   LV18660-UN-20AUG13

   C - U-brackets

   D - Rear lift link

   E - Link pins

   F - Yokes

   Install two U-brackets (C) on rear lift link (D) with two link pins (E) and adjustable yokes (F).

---
