Install Brackets

1.

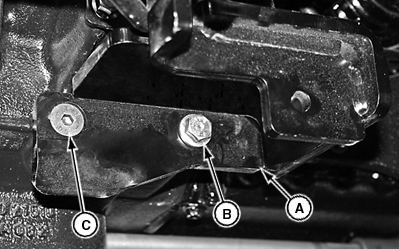

   LV18663-UN-20AUG13

   A - Bracket

   B - Hex Head Bolt, M12x30

   C - Socket Head Bolt M12x30

   Install right bracket (A) on tractor with one M12x30 hex head bolt (B) and one M12x30 hex socket head bolt (C). Push bracket fully forward and tighten hardware.

---




2.

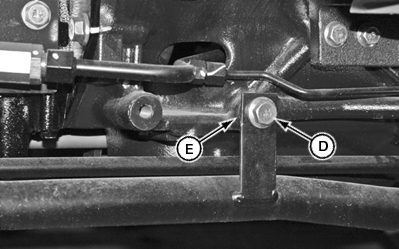

   LV18664-UN-20AUG13

   D - Bolt

   E - Spacer

   Remove bolt (D) and spacer (E) from suction side filtration tube at left side of tractor.

---




3.
   LV18655-UN-20AUG13

   F - Bracket

   G - Tab

   H - Hex Head Bolts, M12x30

   Slide edge of right bracket (F) behind tab (G). Push bracket fully forward and secure with two M12x30 hex head bolts (H).

---
