Install Mid Rockshaft

1. NOTE: Make sure rockshaft bushings (A) are properly seated as the half clamps are tightened. Bushings may be damaged if not properly seated.

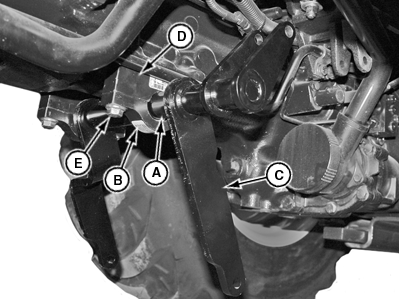

   LV18666-UN-20AUG13

   A - Rockshaft bushing

   B - Half Clamp

   C - Rockshaft

   D - Block Clamp

   E - Hex Head Bolts, M12x90

   Position rockshaft bushings (A) with flange end facing centerline of tractor, and between half clamp (B) and mid rockshaft (C).

---




2. Position block clamp (D) on top of mid rockshaft and install all parts to tractor with four M12x90 hex head bolts (E).

3. Tighten bolts to 130 N•m (96 lb-ft).
