Install Height Adjust Link

1.

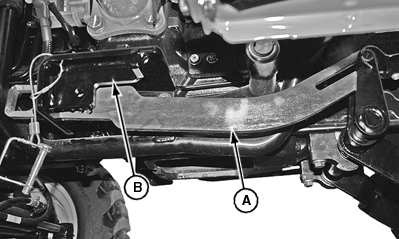

   LV18667-UN-20AUG13

   A - Height Adjust Link

   B - Bracket

   Slide height adjust link (A) in left bracket (B).

---




2.

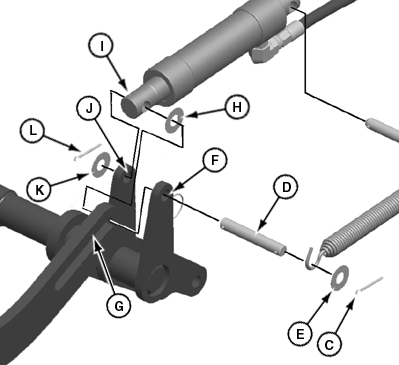

   LV18668-UN-20AUG13

   C - Cotter Pin

   D - Rockshaft Pin

   E - Washer

   F - Arm of Rockshaft

   G - Lock Link

   H - Washer

   I - Cylinder

   J - Arm of Rockshaft

   K - Washer

   L - Cotter Pin

   Install cylinder rod end and height lock link to rockshaft. Insert cotter pin (C) into end of rockshaft pin (D). Push pin through washer (E), first arm of rockshaft (F), slot in height lock link (G), washer (H), rod end of cylinder (I), second arm on rockshaft (J) and final washer (K). Secure with cotter pin (L). Make sure washers are installed as shown.

---




3. NOTE: If installing lift kit on tractor with cab, a separate bracket must be purchased before cylinder can be installed.

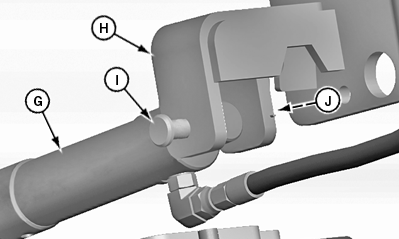

   LV18669-UN-20AUG13

   Tractor with cab

   G - Cylinder

   H - Bracket

   I - Drilled Pin, M12x70

   Tractor with cab: Attach head end of cylinder (G) to bracket (H) with M12x70 drilled pin (I) and locking ring (J).

---




4.

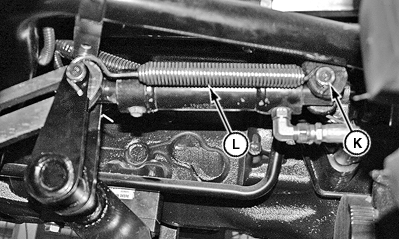

   LV18670-UN-20AUG13

   K - Drilled Pin M12x70

   L - Spring

   Secure other end of cylinder with M12x70 drilled pin (K), washer and cotter pin.

---




5. Install spring (L) with spring rotation down.
