Complete Installation of Lift Kit

1.

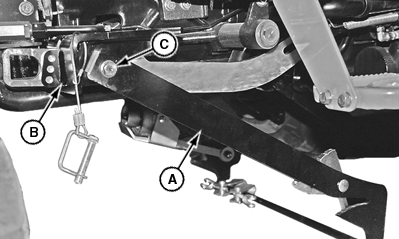

   LV18671-UN-20AUG13

   A - Lift Link

   B - Bracket

   C - Bolt, Bushing and Locknut

   Secure rear lift link (A) to left bracket (B) with one M12x50 flange bolt, one bushing and one M12 locknut (positioned at outside of lift link) (C).

---




2. Secure rear lift link to right bracket.

3.

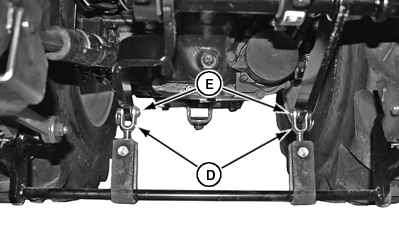

   LV18672-UN-20AUG13

   D - Adjustable Yokes

   E - Drilled Pins, M12x35

   Attach adjustable yokes (D) to mid rockshaft with two M12x35 drilled pins (E) and locking rings.

---




4. Install mid PTO shaft.

5. Either route hydraulic cylinder hose to rear of tractor and attach to third SCV, or attach it to curl circuit on dual SCV.

6. Install one hair pin in rear hole on right arm of rear lift link. Install hair pin in hole in left bracket.

7.

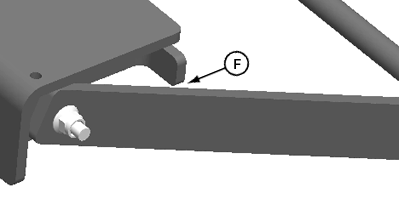

   LV18673-UN-20AUG13

   F - Arms should clear up-stops by 1-2 mm (0.04-0.08 in.)

   Start tractor and slowly raise lift system. Arms of rear link should clear up-stops at rear of brackets mounted on transmission by 1-2 mm (0.04 - 0.08 in.) (F).

---
