Prepare Tractor and PTO Coupler

  1. Raise lift system fully.

  2. Remove pin from height lock.

  3. Lower lift system fully.

  4. Remove snap lock pin from coupler support and make sure support drops completely.

  5. LV18674
    LV18674-UN-20AUG13

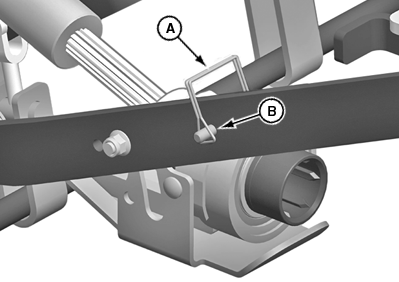

    A - Pins

    B - Storage holes

    Place pins (A) in forward storage holes (B) in lift link.


  6. LV18675
    LV18675-UN-20AUG13

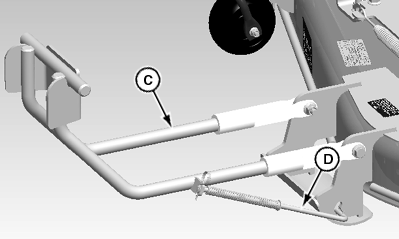

    C - Front Link

    D - Spring Rod

    Make sure front link (C) of mower is unfolded from top of deck and spring rod (D) is inserted in slot at front of deck.


  7. LV18676
    LV18676-UN-20AUG13

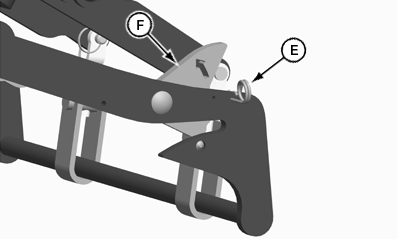

    E - Hair Pins

    F - Locks

    Hair pins (E) should be in the storage position and locks (F) should be in the install/locked position.
