Using Height Adjust Link


For Transport

  • NOTE: Do not mow with mower in highest (transport) position. Mow at least 25 mm (1 in.) lower than highest position.
    Raise deck to highest position, pull link forward and install pin in nearest hole available. Lower deck after pin is engaged to transport position.

To Set Cut Height

  1. Lower mower slowly to desired cutting height.

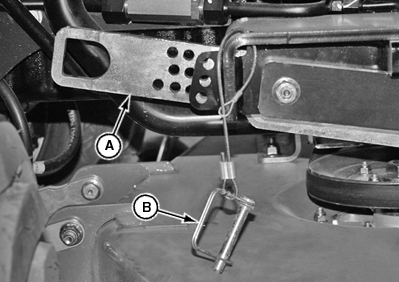

  2. LV18685
    LV18685-UN-20AUG13

    A - Height Adjust Link

    B - Pin

    Pull height adjust link (A) forward fully and place pin (B) in nearest hole. Be aware of hole location for any future adjustments.


  3. Lower mower.

  4. If cutting height is too low, raise mower, remove pin and install in adjacent hole then lower mower. Holes in height adjust link allow for adjustment in (13 mm) 1/2 increments.

UP00731,0000068-19-20130826
