Servicing Gearbox

Checking Oil Level

1. Remove plug from one side of gearbox.

2. Oil level should be even with bottom edge of plug hole.

3. If oil is low, add recommended oil.

4. Install plug.

Changing Oil

1. Remove gearbox bracket with gearbox. See Removing Belt in SERVICE Section.

2.
   LV18689-UN-20AUG13

   A - Plug

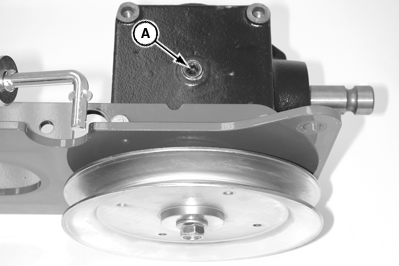

   Remove plug (A) on both sides of gearbox.

---




3. Lift and turn gearbox bracket on side to drain oil from gearbox.

4. Route belt around gearbox sheave as you install gearbox bracket on five bolts. See Installing Belt in SERVICE.

5. Following remaining instructions in Installing Belt in SERVICE to install gearbox and rod.

6. Add recommended oil to bottom edge of plug hole in gearbox.

7. Install plugs.
