Replacing Wheels

  1. Park machine on a level surface, not on a slope.

  2. Disengage mower blades.

  3. Fully raise mower.

  4. Lock park brake.

  5. Stop engine.

  6. Remove key.

  7. Wait for engine and all moving parts to stop before leaving operator’s seat.

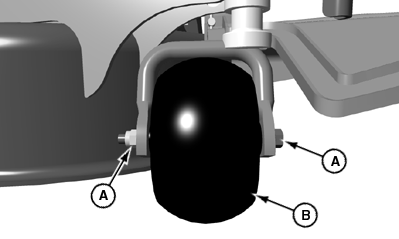

  8. LV18697
    LV18697-UN-20AUG13

    A - Wheel Hardware

    B - Wheel

    Remove wheel hardware (A).


  9. IMPORTANT: Avoid damage! Do not overtighten wheel hardware. Overtightening hardware will cause damage to bushing.

    Install new wheel (B) with hardware.

UP00731,0000077-19-20130905
