Install Hangers

Install Hangers on Tractors without Front Hitch

1.

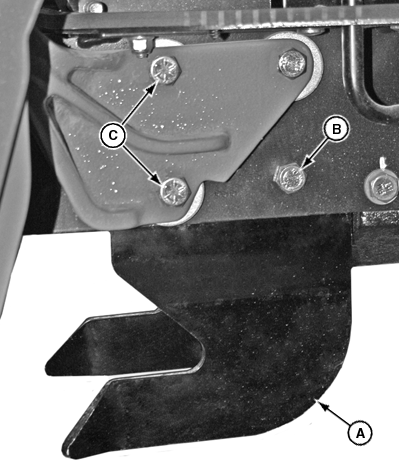

   LV18661-UN-20AUG13

   Hangers shown on tractor with grille guard

   A - Hanger

   B - Flange Head Bolts

   C - Flange Head Bolts

   Install left hanger (A).

   1. Tractor with grille guard: Install left hanger (A) on inside of tractor frame with one M12x45 flange head bolt (B), two M12x65 flange head bolts (C) and three M12 locknuts.

   2. Tractor without grille guard: Install left hanger (A) on inside of tractor frame with three M12x45 flange head bolts (B and C) and M12 locknuts.

---




2. Install right hanger.

3. Push bottom of hangers fully rearward and tighten hardware to 130 N•m (96 lb-ft).

Install Hangers on Tractors with Front Hitch

1. NOTE: Hangers included in this kit are intended for use on tractors without front hitch. If kit is being installed on tractor with front hitch, different hangers must be purchased and installed. See your John Deere Dealer.

   Fully lower front hitch using hydraulics.

2. Completely close flow valve.

3. Disconnect front hitch hoses from SCV and tie out of way.

4.
   LV18662-UN-20AUG13

   A - Locking ring

   B - Bracket

   C - Pin

   D - Hanger

   Remove locking rings (A) securing hitch arms to front hitch structure.

---




5. Pull brackets (B) and pins (C) out enough to insert new hangers (D).

6. Push pins (C) through holes in hangers and replace locking rings (A).
