Replacing Headlight Bulb (2032R)

IMPORTANT: Do not touch glass headlight bulb with bare skin or bulb may fail prematurely. Use gloves or a cloth when inspecting or replacing the bulb.

  1. Park machine safely. (See Parking Safely in the Safety Section.)

  2. Raise hood.

  3. LVAL38562
    LVAL38562-UN-20SEP12

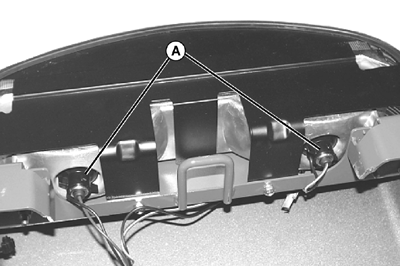

    A - Bulb Assembly

    Rotate counterclockwise to remove bulb assembly (A) from housing socket.


  4. Push bulb inward and counterclockwise to remove bulb.

  5. Push new bulb inward and clockwise to install bulb.

  6. Install new bulb assembly into housing socket, and rotate clockwise to lock into place.

  7. Lower hood.

  8. Check operation of headlights.

KN52281,1004234-19-20121108
