Replacing Light Bulbs


Replacing Tail/Turn Light Bulb

  1. Park machine safely. (See Parking Safely in the Safety Section.)

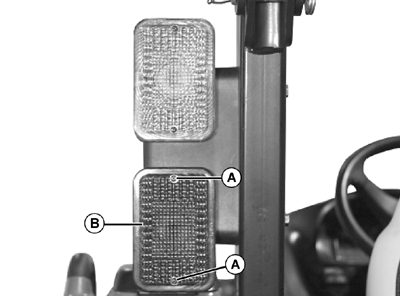

  2. LVAL38563
    LVAL38563-UN-20SEP12

    A - Two Screws

    B - Red Lens

    Remove two screws (A) and red lens (B).

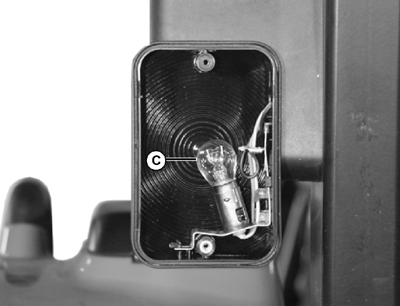

  3. LVAL38564
    LVAL38564-UN-20SEP12

    C - Rotate Bulb

    Push down and rotate bulb (C) to remove. Do not twist bulb.


  4. Push down and rotate new bulb into socket.

  5. Check operation of taillights and turn signals.

  6. Install lens and screws.


Replacing Warning Light Bulb

  1. Park machine safely. (See Parking Safely in the Safety Section.)

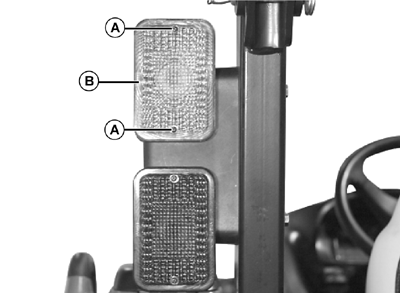

  2. LVAL38565
    LVAL38565-UN-20SEP12

    A - Two Screws

    B - Amber Lens

    Remove two screws (A) and amber lens (B).

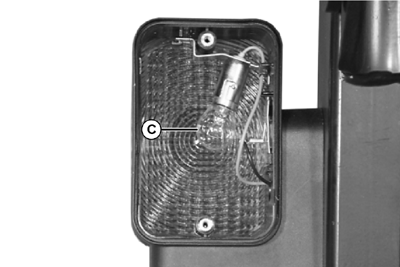

  3. LVAL38566
    LVAL38566-UN-20SEP12

    C - Rotate Bulb

    Push up and rotate bulb (C) to remove. Do not twist bulb.


  4. Push up and rotate new bulb into socket.

  5. Check operation of turn signal and warning lights.

  6. Install lens and screws.

KN52281,1004235-19-20121108
