Using Rear and Mid Power-Take-Off (PTO)

IMPORTANT: Avoid Damage! Use rear mounted equipment rated for 540 rpm. Do not operate mid or rear PTO over 540 RPM mark on tachometer.

NOTE: Mid PTO operation for this machine is not intended to be used when the operator is off the seat. Rear PTO operation is possible out of seat provided proper sequence is followed.

Engaging the PTO—Operator on Seat

1. Sit on operator seat.

2. Lock the park brake.

3. Move the 2-speed range lever to the N position.

4. NOTE: The starter will not crank if the PTO/RIO switch knob is in any engaged/on position.

   Start the engine.

5. Set engine speed to 1500 rpm or less.

6.
   LVAL38279-UN-21AUG12


   LVAL38431-UN-02NOV12

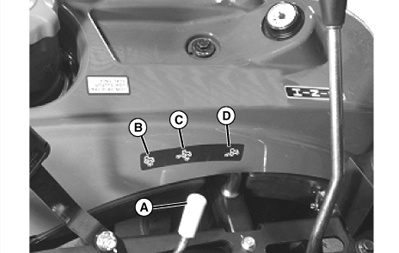

   A - PTO Control Lever

   B - Mid PTO Only

   C - Mid and Rear PTO

   D - Rear PTO Only

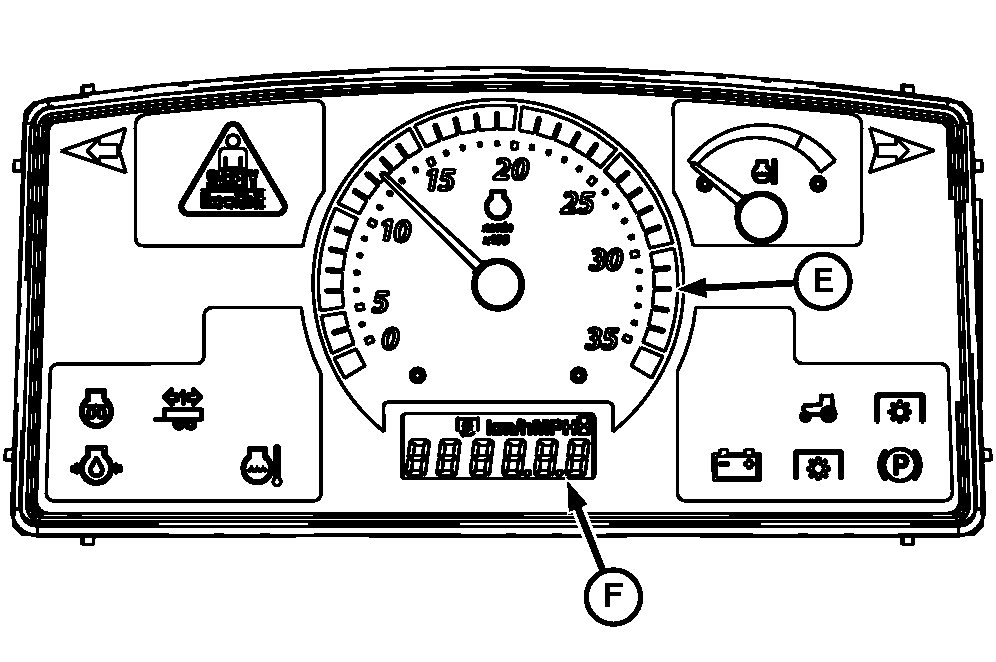

   E - 3200 RPM

   F - LCD

   Move the PTO control lever (A) to desired operating position.
   • Position (B) - Mid PTO only.
   • Position (C) - Mid and Rear PTO
   • Position (D) - Rear PTO only.



---




7. Pull PTO/RIO switch knob up to the engaged/on position.

8. Adjust the hand throttle lever forward to the desired speed for the implement used.

   • NOTE: The LCD indicates the PTO speed at an engine speed of 3200 rpm.
     At 3200 engine rpm the mid PTO speed will be 2100 rpm and rear PTO speed will be 540 rpm, as indicated on the LCD.
   • If PTO shuts off during use, turn off engine and push down to turn off PTO/RIO switch. Lock park brake. Allow engine to cool. Check coolant level and add coolant if necessary. Clean debris away from radiator cooling fins. Sit on seat, and start engine. Pull PTO/RIO switch up to the on position. If PTO still does not engage, see your local John Deere Dealer for service.



Using Rear Power-Take-Off (PTO)—Operator off Seat

1. Sit on operator seat,

2. Lock the park brake.

3. Move the 2-speed range lever to the N position.

4. NOTE: The starter will not crank if the PTO/RIO switch knob is in any engaged/on position.

   Start the engine.

5. Set engine speed to 1500 rpm or less.

6. Move the PTO control lever (A) to Position (D) - Rear PTO only.

7. Exit seat for rear PTO operation without operator on seat..

8. Pull PTO/RIO switch knob up to the engaged/on position.

9. Adjust the hand throttle lever forward to the desired speed for the implement used.

Disengaging the PTO

1. Adjust engine rpm to low idle.

2. Push PTO/RIO switch knob down to the disengaged/off position.
