Lubricating Machine Grease Fittings

• NOTE: Newer model tractors do not have a steering cylinder lubrication fitting. Older model tractors have the steering cylinder lubrication fitting and lubrication is required.
  Extremely Wet and Muddy Conditions - Lubricate machine grease fittings (A) every 10 hours of operation or on a daily basis.
• All Other Conditions - Lubricate machine grease fittings every 50 hours of operation.

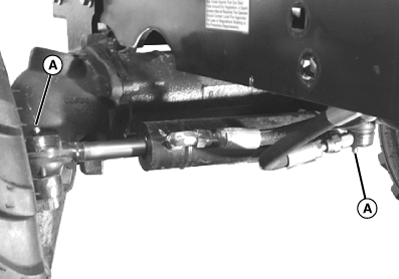

LVAL38301-UN-21AUG12

A - Grease Fittings

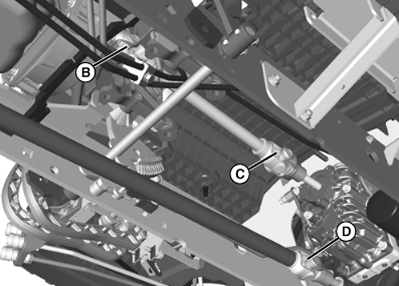

LVAL38302-UN-21AUG12

Parts have been removed for better view.

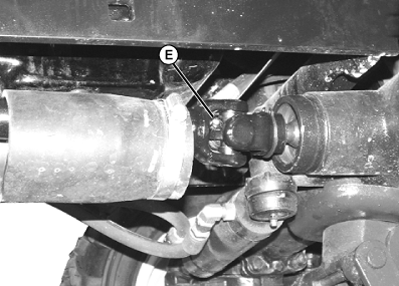

LVAL38303-UN-21AUG12

Clamp loosened and boot pulled back for better view.

A - Power Steering Cylinder

B - Main Driveline - Front

C - Main Driveline - Rear

D - MFWD Driveline - Rear

E - MFWD Driveline - Front
