Using Cruise Control—If Equipped

R—Series Cruise Control

CAUTION: Avoid injury! Use cruise control only in large, open areas. Shut off before turning or when in areas with many obstacles.

NOTE: The cruise control is only operational when the machine is traveling forward.

Engaging Cruise Control

1.

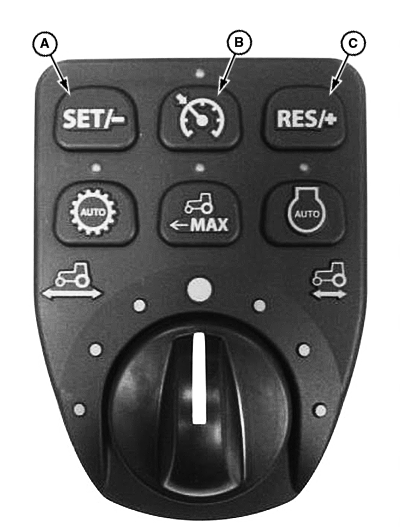

   LV17526-UN-19APR13

   A - Cruise Control SET/- Switch

   B - Cruise Control Activation Switch

   C - Cruise Control RES/+ Switch

   Depress forward travel pedal until desired travel speed is reached.
2. Press cruise control activation switch (B).
3. Press cruise control SET/- switch (A).
4. Release forward travel pedal.
5. To increase travel speed or to resume travel speed, press cruise control RES/+ Switch (C).
6. To decrease travel speed press cruise control SET/- switch (A).

Disengaging Cruise Control

NOTE: The machine will stop if cruise control is disengaged while the machine is in motion. To maintain forward motion, depress the forward travel pedal before disengaging cruise control.

One of the following actions will disengage the cruise control.

• Press cruise control activation switch (B).
• Press the brake pedal.
• Press reverse pedal.
• Enable SpeedMatch.

M—Series Cruise Control

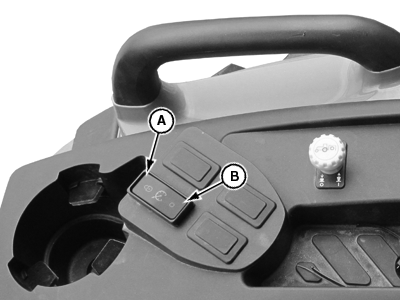

LV18381-UN-16JUL13

A - Top of Cruise Control Switch

B - Bottom of Cruise Control Switch

CAUTION: Avoid injury! Use cruise control only in large, open areas. Shut off before turning or when in areas with many obstacles.

NOTE: The cruise control is only operational when the machine is traveling forward.

Engaging Cruise Control

1. Depress forward travel pedal until desired travel speed is reached.

2. Fully depress top of cruise control switch (A) to engage cruise control.

3. Release forward travel pedal.

4. To adjust travel speed, disengage cruise control and engage cruise control again at a different speed.

Disengaging Cruise Control

NOTE: The machine will stop if cruise control is disengaged while the machine is in motion. To maintain forward motion, depress the forward travel pedal before disengaging cruise control.

One of the following actions will disengage the cruise control.

• Fully depress bottom of cruise control switch (B).
• Depress the brake pedal.
• Press reverse pedal.

Instrument panel cruise control indicator light should go out when the cruise control is disengaged.
