Using Windshield Wiper and Washer—Cab

Front Wiper

LV18376-UN-16JUL13

LV19637-UN-05NOV13

LV18378-UN-16JUL13

A - Off

B - Slow

C - Fast

D - Wiper Switch Knob

E - Wash

F - On

G - Off

H - Reservoir

NOTE: The front wiper will return to the park position when it is switched off.

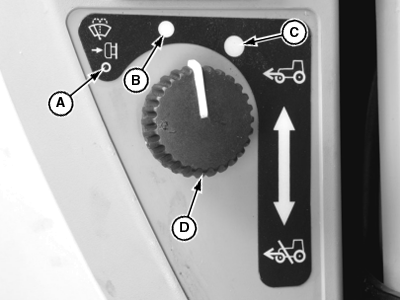

The front wiper switch has three positions:

• OFF (A)

• SLOW (B)

• FAST (C)

Depress the wiper switch knob (D) to activate the front washer:

Rear Wiper (Optional)

NOTE: The rear wiper will stop in any position when it is switched off.

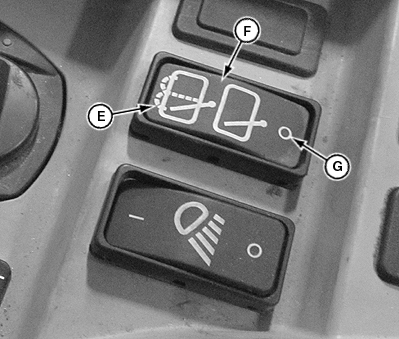

The rear wiper switch has three positions.

• WASH (E)—Hold top of switch down to activate washer.

• ON (F)

• OFF (G)

Filling Washer Fluid Reservoir

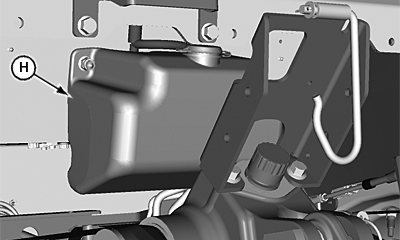

Washer fluid reservoir (H) is located at rear of machine. Fill reservoir with non-freezing windshield washer fluid.
