Exterior Cable Access—Cab

LV18079-UN-11JUN13

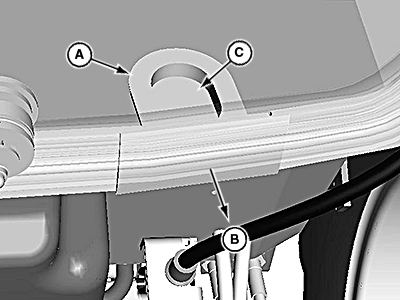

A - Rubber Grommet

B - Rear of Machine

C - Grommet Center

NOTE: Window seal not shown for clarity.

Cabs are equipped with a rubber grommet (A) in the cab frame, located below the right side of the rear window, to facilitate routing exterior monitor cables into the cab interior. The grommet can be removed from the frame by pulling it to the rear of the machine (B).

• The grommet center (C) can be cut as needed to fit the cables required to pass through it.
