Open Operator Station Controls—Hydrostatic Transmission

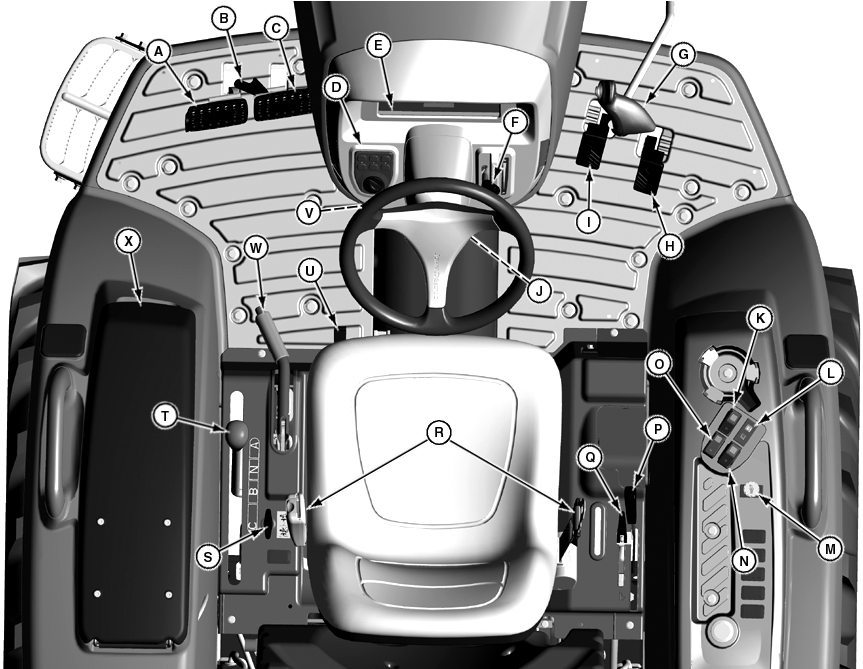

LV21347-UN-14MAR14

M Series—All Controls Shown May Not Be Installed on Your Machine

A - Left Turn Brake Pedal

B - Brake Pedal Lock

C - Right Turn Brake Pedal

D - Control Module

E - Instrument Cluster

F - Hand Throttle

G - Dual Selective Control Valve (SCV) Lever

H - Reverse Travel Pedal

I - Forward Travel Pedal

J - Key Switch

K - Cruise Control

L - Hydraulic Oil Temperature Indicator

M - PTO Engagement Switch

N - 5th Valve Continuous Flow Switch

O - 3rd SCV Continuous Flow Switch

P - Rockshaft Control Lever

Q - Rockshaft Depth Stop

R - Seat Belt

S - Mechanical Front Wheel Drive (MFWD) Lever

T - Transmission Range Shift Lever

U - Differential Lock Lever

V - Horn

W - Park Brake Lever

X - Fender Toolbox

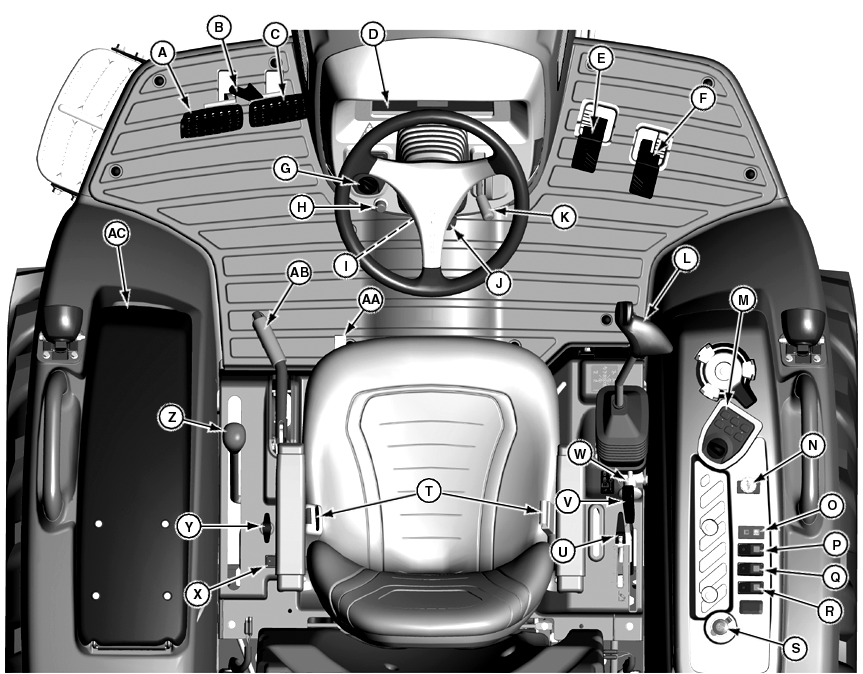

LV21350-UN-14MAR14

R Series—All Controls Shown May Not Be Installed on Your Machine

A - Left Turn Brake Pedal

B - Brake Pedal Lock

C - Right Turn Brake Pedal

D - Instrument Cluster

E - Forward Travel Pedal

F - Reverse Travel Pedal

G - Control Module

H - Horn

I - Key Switch

J - Tilt Steering Control Lever

K - Hand Throttle

L - Dual Selective Control Valve (SCV) Lever

M - Cruise Control Module

N - PTO Engagement Switch

O - Hydraulic Oil Temperature Indicator

P - 5th Valve Continuous Flow Switch

Q - 3rd SCV Continuous Flow Switch

R - Rear Diverter/Downforce Switch

S - Power Port

T - Seat Belt

U - Rockshaft Depth Stop

V - Rockshaft Control Lever

W - SCV Lever Lock

X - Hitch Assist Enable Switch

Y - Mechanical Front Wheel Drive (MFWD) Lever

Z - Transmission Range Shift Lever

AA - Differential Lock Lever

AB - Park Brake Lever

AC - Fender Toolbox
