Open Operator Station Controls—PowrReverser™ Transmission

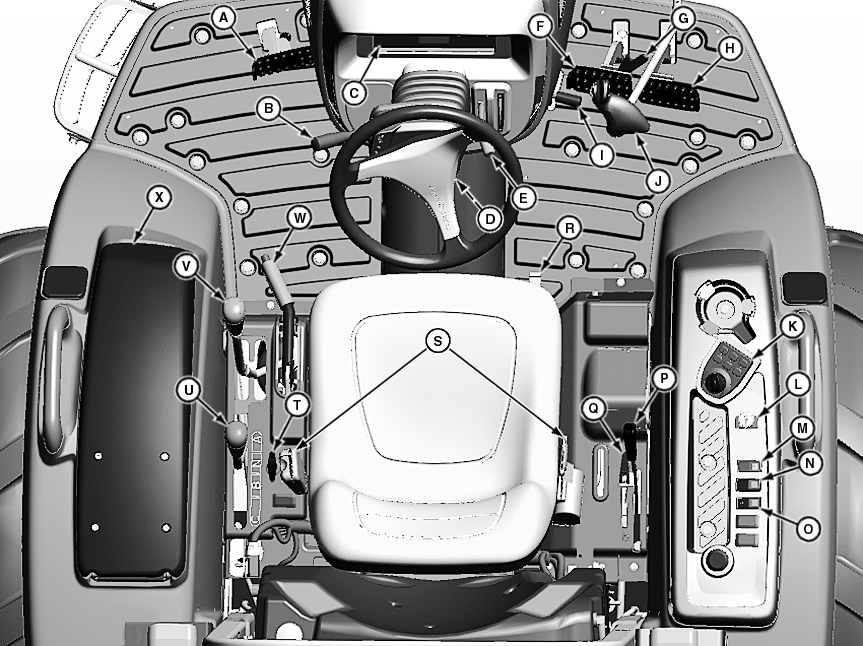

LV21002-UN-14MAR14

M Series—All Controls Shown May Not Be Installed on Your Machine

A - Clutch Pedal

B - Reverser Lever

C - Instrument Cluster

D - Key Switch

E - Hand Throttle

F - Left Turn Brake Pedal

G - Brake Pedal Lock

H - Right Turn Brake Pedal

I - Foot Throttle

J - Dual Selective Control Valve (SCV) Lever

K - Control Module

L - PTO Engagement Switch

M - Hydraulic Oil Temperature Indicator

N - 5th Valve Continuous Flow Switch

O - 3rd SCV Continuous Flow Switch

P - Rockshaft Control Lever

Q - Rockshaft Depth Stop

R - Differential Lock Lever

S - Seat Belt

T - Mechanical Front Wheel Drive (MFWD) Lever

U - Transmission Range Shift Lever

V - Transmission Gear Shift Lever

W - Park Brake Lever

X - Fender Toolbox

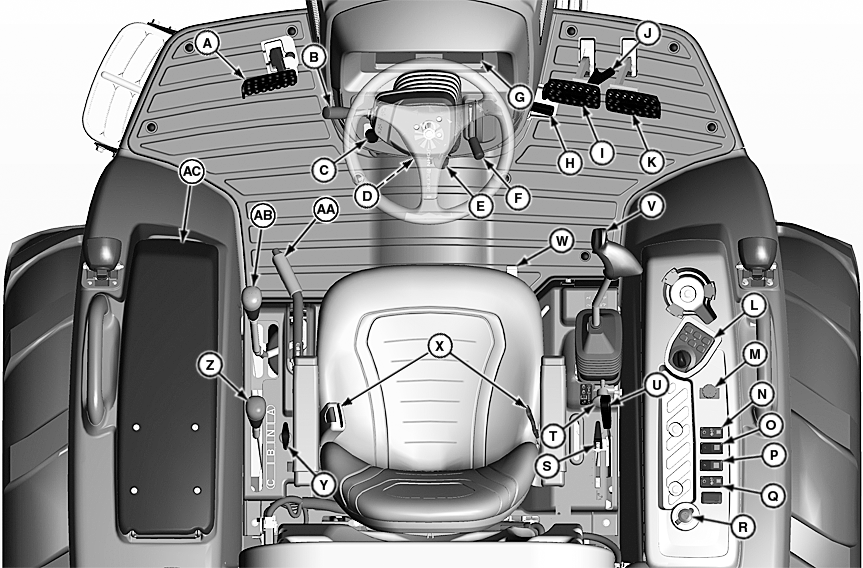

LV20858-UN-04FEB14

R Series—All Controls Shown May Not Be Installed on Your Machine

A - Clutch Pedal

B - Reverser Lever

C - PowrReverser™ Shuttle Control

D - Key Switch

E - Tilt Steering Control Lever

F - Hand Throttle

G - Instrument Cluster

H - Foot Throttle

I - Left Turn Brake Pedal

J - Brake Pedal Lock

K - Right Turn Brake Pedal

L - Control Module

M - PTO Engagement Switch

N - Hydraulic Oil Temperature Indicator

O - 5th Valve Continuous Flow Switch

P - 3rd SCV Continuous Flow Switch

Q - Rear Diverter/Downforce Switch

R - Power Port

S - Rockshaft Depth Stop

T - SCV Lever Lock

U - Rockshaft Control Lever

V - Dual Selective Control Valve (SCV) Lever

W - Differential Lock Lever

X - Seat Belt

Y - Mechanical Front Wheel Drive (MFWD) Lever

Z - Transmission Range Shift Lever

AA - Park Brake Lever

AB - Transmission Gear Shift Lever

AC - Fender Toolbox
