Testing the Seat Switch

PowrReverser Transmission

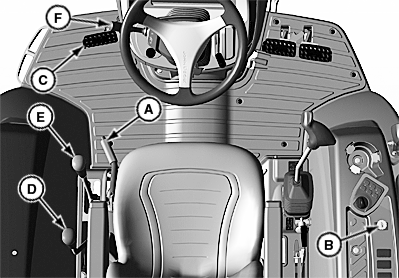

LV20971-UN-04FEB14

A - Park Brake

B - PTO Switch

C - Clutch Pedal

D - Transmission Range Shift Lever

E - Transmission Gear Shift Levers

F - Reverser Lever

1. Sit on operator’s seat.

2. Lock park brake (A).

3. Disengage PTO switch (B).

4. Depress clutch pedal (C) and move the transmission range shift lever (D), transmission gear shift levers (E), and reverser lever (F) to the N (neutral) position.

5. Start engine.

6. Turn on the PTO.

7. Rise up slightly from operator’s seat. Do not dismount machine.

   Result: Engine shutoff solenoid must de-energize in 1/2 second, causing the engine to stop.

Hydrostatic Transmission

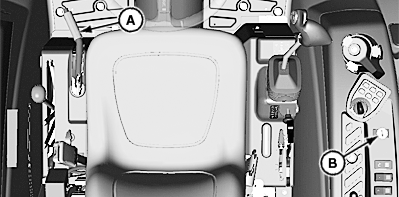

LV20972-UN-04FEB14

A - Park Brake

B - PTO Switch

1. Sit on operator’s seat.

2. Do not depress the hydrostatic travel pedals.

3. Lock park brake (A).

4. Disengage PTO switch (B).

5. Start engine.

6. Turn on the PTO.

7. Rise up slightly from operator’s seat. Do not dismount machine.

   Result: Engine shutoff solenoid must de-energize in 1/2 second, causing the engine to stop.
