Driving Machine—Hydrostatic Transmission

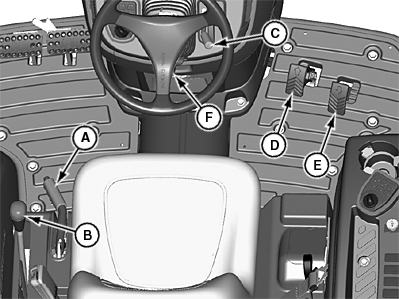

LV17844
LV17844-UN-22MAY13

A - Park Brake Lever

B - Transmission Range Shift Lever

C - Hand Throttle

D - Forward Travel Pedal

E - Reverse Travel Pedal

F - Key Switch

CAUTION: Avoid injury! Always check area around machine for bystanders and obstacles before operating the machine.

IMPORTANT: Avoid damage! To prevent transmission damage, stop machine motion completely before shifting the transmission range shift lever.

  1. Start machine engine.

  2. Unlock park brake lever (A).

  3. Choose A, B, or C speed range on transmission range shift lever (B) to match work application.

  4. Move hand throttle (C) to desired operating speed.

  5. Slowly depress forward travel pedal (D) to move forward. Slowly depress reverse travel pedal (E) to move in reverse.

  6. Release travel pedal to stop machine and change speed range.

  7. Fully stop machine motion before turning key switch (F) to the stop position.
