Cleaning Dust Unloading Valve

IMPORTANT: Avoid damage! Do not operate engine without air cleaner element and rubber dust unloading valve installed.

  1. Park the vehicle safely. (See Parking Safely in Safety Section.)

  2. Allow engine to cool.

  3. Access the engine compartment.

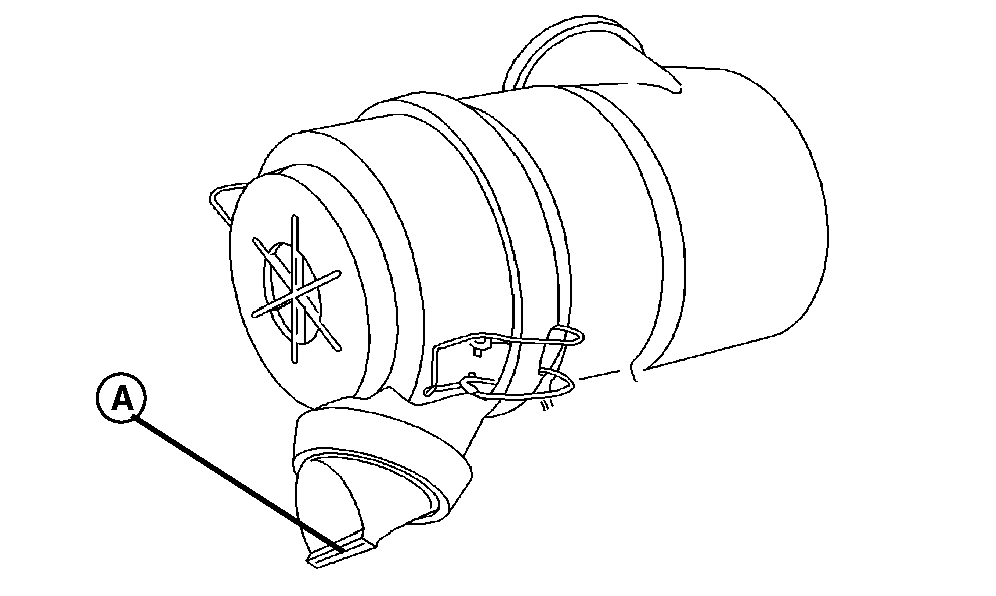

  4. LVAL38312
    LVAL38312-UN-21AUG12

    A - Dust Valve

    Squeeze dust unloading valve (A) to clean. Remove and replace if damaged.

KN52281,1003F0E-19-20120822
