Using Key Switch

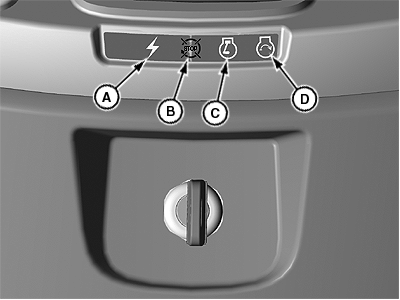

LV17496-UN-19NOV13

A - Acc position

B - Off Position

C - Run Position

D - Start Position

• With key in the acc position (A), accessories can be used. Be careful not to accidentally move key to this position. Battery could be drained.
• With key in the off position (B) , all switched power is off, and the engine should not run.
• Turn key to the run position (C), and the engine oil pressure light and battery charge light will illuminate and activate glow plugs.
• Turn key to the start position (D) to start engine. Release the key after the engine has started. It will automatically return to the run position. Engine will continue to run and engine oil pressure light and battery charge light will turn off.
