Using Instrument Panel

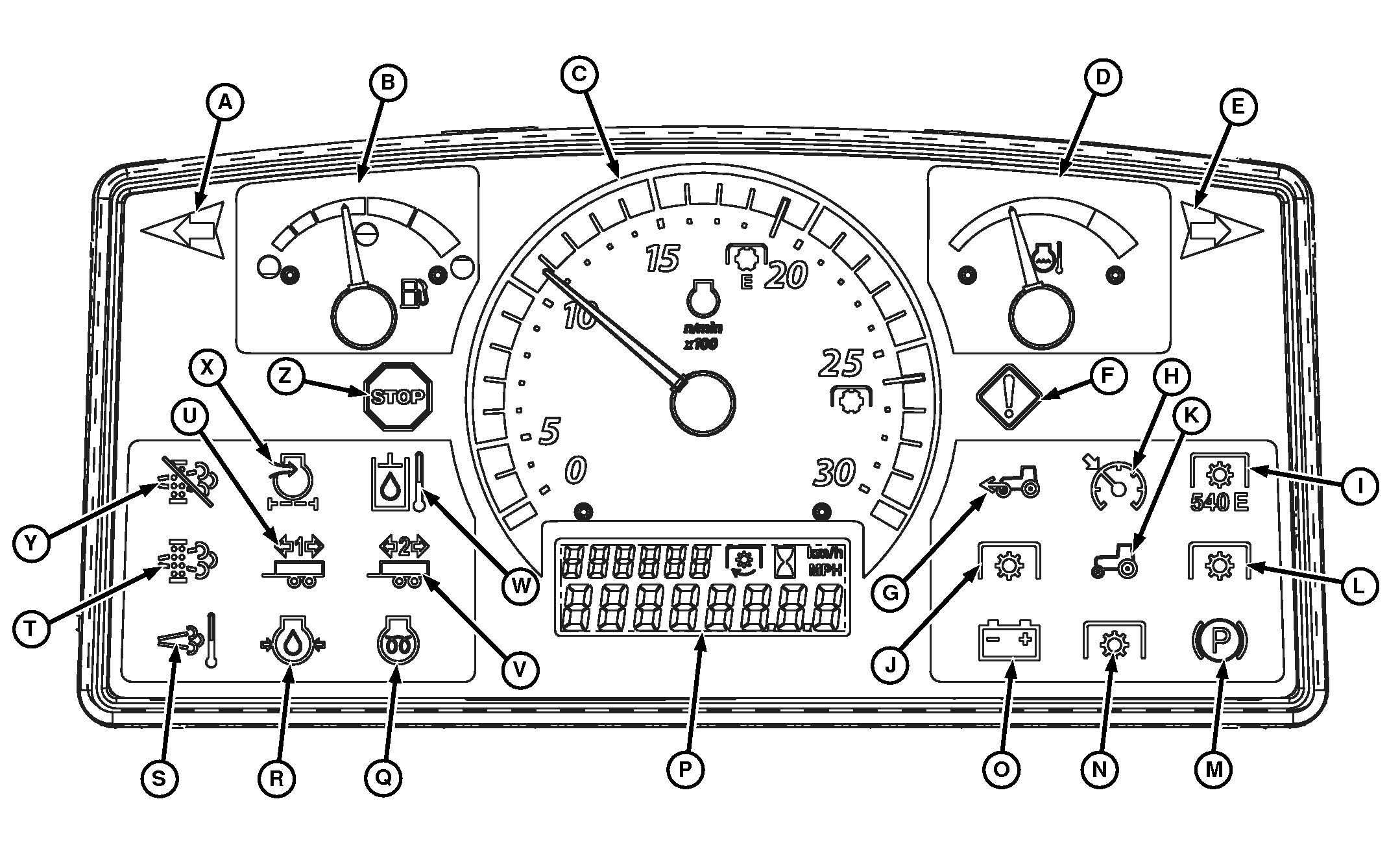

LV17507-UN-29APR13

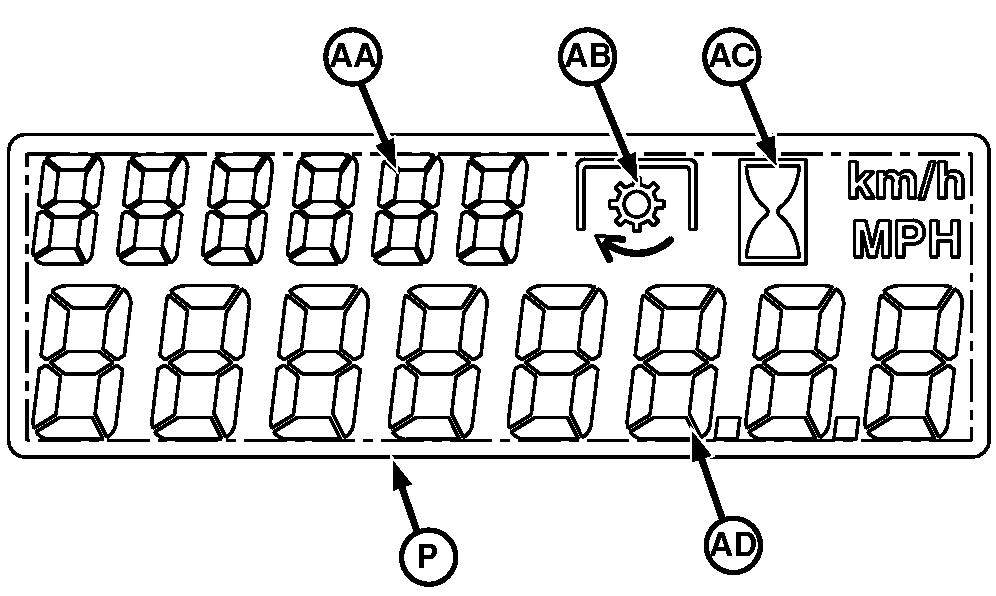

LV17524-UN-29APR13

B—Fuel Gauge—Shows the amount of fuel in the fuel tank.

C—Tachometer—Shows engine speed. Engine speed in 100s. Example: If indicator is pointing at 20, engine speed is 2000 rpm.

Item	Measurement	Specification
Engine Idle
Low Idle	Speed	950 ± 25 rpm
Rated	Speed	2400 rpm
High Idle	Speed	2600 ± 50 rpm

D—Engine Coolant Temperature Gauge—Indicates temperature of cooling system. If gauge needle reaches red range, engine is overheating and engine RPM will derate.

If engine is overheated, remove load on machine immediately. Reduce engine to idle speed and allow engine to cool. Stop engine. Check coolant level in overflow bottle and check for air flow blockage to radiator. If coolant level is correct and needle stays in red range after cleaning grille, stop engine.

E—Right Turn Signal/Warning Flasher Indicator Light—Flashes when right turn signal switch is depressed, or when hazard lights switch is depressed.

F—Service Alert Indicator—Illuminates when a malfunction occurs (review error message in information display). If necessary, have John Deere dealer diagnose vehicle.

G—Front Wheel Drive Indicator—Illuminates when MFWD is engaged.

H—Cruise Control Light—Illuminates when cruise control is engaged (if equipped).

I—Rear 540 PTO— Not Used.

J—Front PTO Indicator Light—Illuminates when front PTO is engaged (if equipped).

K—Not Used

L—Rear PTO Indicator Light—Illuminates when Rear PTO is engaged.

M—Parking Brake Light—Illuminates when ignition key is in the run position and parking brake is locked.

N—Mid PTO Indicator Light—Illuminates when Mid PTO is engaged.

O—Alternator/Battery Charging Light—Illuminates when ignition key is in the run position and engine is not running. If light turns on while engine is running, alternator is not charging battery. Move engine speed control lever lever to full throttle position. Stop engine if light remains on.

P—Information Display—Displays speedometer, hour meter, PTO hour, PTO speed, soot levels, regen information and diagnostic trouble code when error is active.

Q—Engine Glow Plug Indicator Light—Illuminates when ignition key is in ON position. Glow plugs are energized whenever starter is engaged.

R—Engine Oil Pressure Light—Illuminates when ignition key is in the run position and the engine is not running. If this light turns on while engine is running, engine oil pressure is too low. Stop engine.

S—High Exhaust Temperature Indicator—Illuminates when the temperature is high enough inside the exhaust filter to allow active filter cleaning.

T—Exhaust Filter Cleaning Indicator—Illuminates when soot levels in the filter are high and exhaust filter cleaning is needed.

U—Trailer 1 Indicator—Starts flashing when trailer turn signal or hazard warning lights are switched on (if equipped).

V—Trailer 2 Indicator—Starts flashing when trailer turn signal or hazard warning lights are switched on (if equipped).

W—Hydraulic Oil Temperature Light—Not Used.

X—Engine Air Cleaner Restriction Indicator—Illuminates when air cleaner element is clogged (clean or replace element). If necessary, have John Deere dealer diagnose vehicle.

Y—Exhaust Filter Disabled Indicator—Illuminates when the exhaust filter cleaning switch had been disabled.

Z—Stop Indicator—Illuminates when a serious malfunction occurs. SHUT OFF engine IMMEDIATELY and determine cause (review error message in information display). If necessary, have a John Deere dealer diagnose vehicle.

AA—Vehicle Information Display—Shows vehicle wheel speed, engine hours, PTO speed, and diagnostic information.

AB—PTO Icon—Illuminates when PTO is operating and PTO speed is displayed in the vehicle information display.

AC—Hour Meter Icon—Illuminates when engine hours are being displayed on information display.

AD—Vehicle Information Display—Shows vehicle wheel speed, engine hours, PTO speed, and diagnostic information.
