Using Cruise Control (If Equipped)

CAUTION: Avoid injury! Use cruise control only in large, open areas. Shut off before turning or when in areas with many obstacles.

NOTE: The cruise control is only operational when the machine is traveling forward.


Engaging Cruise Control

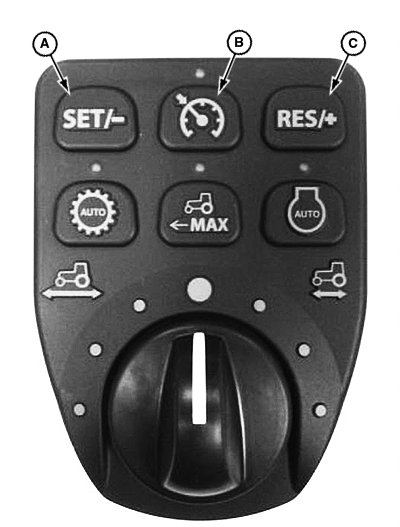

  1. LV17526
    LV17526-UN-19APR13

    A - Set/- switch

    B - Cruise Control Activation Switch

    C - Res/+ switch

    Depress forward travel pedal until desired travel speed is reached.
  2. Press cruise control activation switch (B).
  3. Press Set/- switch (A).
  4. Release forward travel pedal.
  5. To increase travel speed press Res/+ switch (C) or to decrease travel speed press cruise control Set/- switch (A).
  6. To resume travel speed after deactivation press Res/+ switch (C).

Disengaging Cruise Control

NOTE: The machine will stop if cruise control is disengaged while the machine is in motion. To maintain forward motion, depress the forward travel pedal before disengaging cruise control.

  1. Press cruise control activation switch (B), or depress the brake pedal.

KN52281,10047CC-19-20130808
