Using Throttle

LV17510
LV17510-UN-19APR13

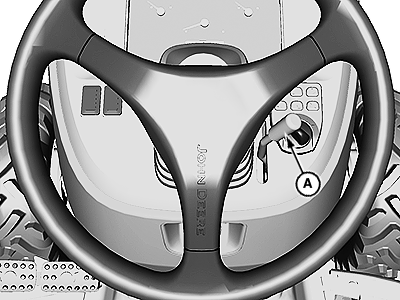

A - Throttle Lever

Use throttle to change engine speeds. Use throttle in conjunction with tachometer to set engine speeds.

  • Increase Engine Speed—Push throttle lever (A) toward front of machine.
  • Decrease Engine Speed—Pull throttle lever (A) toward rear of machine.

    ItemMeasurementSpecification
    Engine/Tachometer Speeds
    Low IdleSpeed950 rpm
    RatedSpeed2600 rpm
    High Idle 2750 ± 50 rpm
