Operating Transmission

1. IMPORTANT: Avoid damage! Select the proper speed range and gear for the job:

   • Never overload engine by lugging machine at low idle speeds.
   • Raise engine speed to match expected loads. If a slight increase in engine rpm occurs simultaneously with moving engine speed control knob (B) forward, engine is not overloaded.



   The transmission range shift lever (A) provides three speed ranges and is used in conjunction with the forward travel pedal (C) and reverse travel pedal (D).

2.

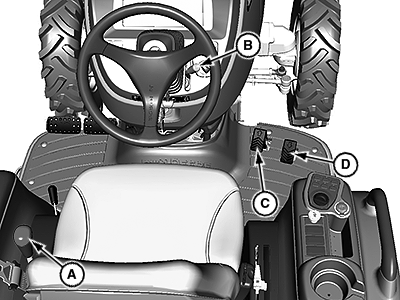

   LV17531-UN-19APR13

   A - Transmission Range Shift Lever

   B - Engine Speed Control Knob

   C - Forward Travel Pedal

   D - Reverse Travel Pedal

   Choose a speed range to match work application.
   • A—Low speed operations such as tilling hard soil, mowing long grass, or heavy hauling. Machine speed is decreased, but machine power is increased.
   • N—Neutral position. Lever must be in the N (neutral) position when starting the engine.
   • B—High speed operations such as light tilling and hauling, mowing short grass and transport. Machine speed is increased, but machine power is decreased.
   • C—Road travel.



   Stop machine to change speed range.

---
