Driving Machine

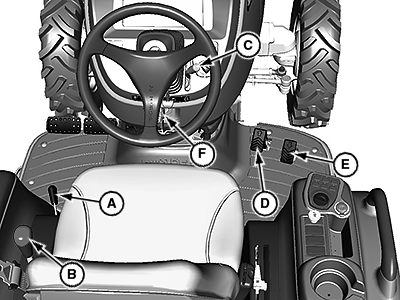

LV17532-UN-19APR13

A - Park Brake Lever

B - Transmission Range Shift Lever

C - Engine Speed Control Lever

D - Forward Travel Pedal

E - Reverse Travel Pedal

F - Ignition Key Switch

CAUTION: Avoid injury! Always check area around machine for bystanders and obstacles before operating the machine.

IMPORTANT: Avoid damage! To prevent transmission damage, stop machine motion completely before shifting the transmission range shift lever.

1. Start machine engine.
2. Unlock park brake lever (A).
3. Choose A, B, or C speed range on transmission range shift lever (B) to match work application.
4. Move engine speed control lever (C) to desired operating speed.
5. Slowly depress forward travel pedal (D) downward to move forward. Slowly depress reverse travel pedal (E) downward to move in reverse.
6. Release travel pedal to stop machine and change speed range.
7. Fully stop machine motion before turning ignition key switch (F) to the stop position.
