Removing and Installing Battery

Removing

1.

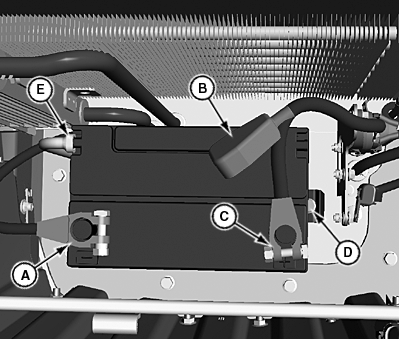

   LV17636-UN-30APR13

   A - Black Negative Cable

   B - Red Positive Terminal Cover

   C - Red Positive Cable

   D - Hold Down Bracket

   E - Vent Tube

   Park machine safely. (See Parking Safely in Safety section.)

---




2. Raise hood.

3. Disconnect black negative (—) cable (A) from battery terminal first.

4. Slide red positive terminal cover (B) back and disconnect red positive (+) cable (C) from battery terminal.

5. Remove hold down bracket (D) and nut from both sides of battery tray.

6. Pull battery vent tube (E) from battery tray.

7. Remove battery.

Installing:

1. Position battery in machine.

2. Route battery vent tube (E) through hole in battery tray.

3. Install hold down bracket (D) and tighten nut securing battery to battery tray.

4. Connect positive (+) cable (C) to battery first, then attach negative (-) cable (A) to battery.

5. Apply spray lubricant on battery terminals to help prevent corrosion.

6. Position red positive battery terminal cover (B) on red positive (+) cable.

7. Lower hood.
