Removing and Installing Side Panels

Removing

1. Park machine safely. (See Parking Safely in Safety section.)

2. Raise hood.

3.

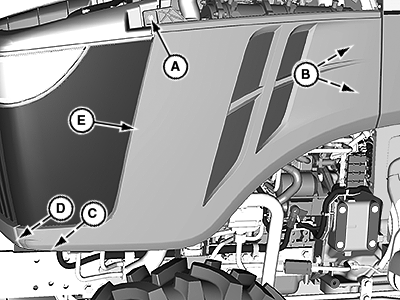

   LV17666-UN-02MAY13

   Left Side Shown. Right Side is Similar.


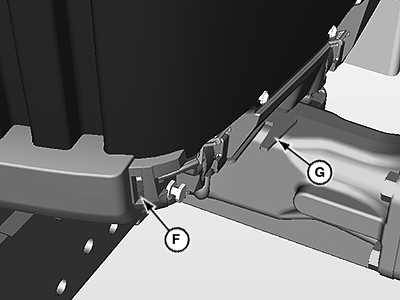

   LV17667-UN-02MAY13

   A - Bolt

   B - Mounting Nut (4 used)

   C - Mounting Tab

   D - Front Mounting Tab

   E - Side Panel

   F - Front Mounting Slot

   G - Mounting Hook

   Remove bolt (A) and nut.

---




4. Remove nuts (B) releasing side panel.

5. Tilt side panel (E) away from machine and slide forward so mounting tab (C) clears mounting hook (G) and front mounting slot (F). Remove the side panel.

Installing

1. Align the side panel mounting hook and tab with front mounting slot (F) and mounting hook (G) on machine.

2. Slide side panel, then tilt into place.

3. Secure rear of panel mounting bracket with mounting nuts (B).

4. Install bolt (A) and nut to secure side panel (E).

5. Lower the hood.
