Raising and Lowering Roll-Over Protective Structure (ROPS)

CAUTION: Avoid injury! Always wear seat belt when operating machine with folding Roll-Over Protective Structure (ROPS) in upright position. Do not jump from machine if machine tips.

If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.

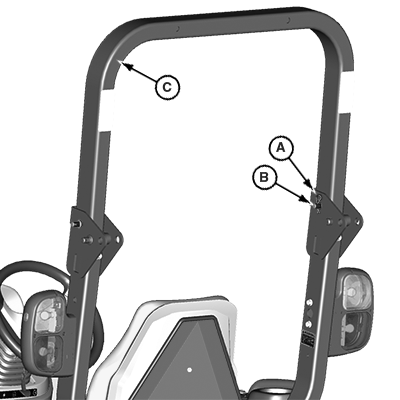

LV17701-UN-06MAY13

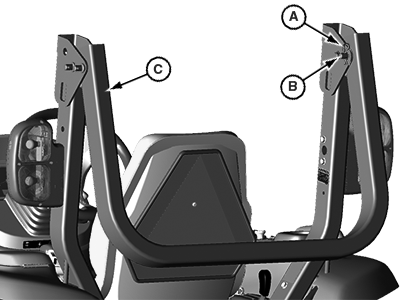

LV17702-UN-06MAY13

A - Spring Locking Pin

B - Drilled Pin

C - ROPS Crossbar

Lowering ROPS Crossbar

1. Remove spring locking pin (A) and drilled pin (B) on each side of the ROPS.

2. Carefully lower ROPS crossbar (C).

3. Align crossbar bracket holes with support bracket holes on each side of the ROPS.

4. Install drilled pins (B) and spring locking pins (A) to lock crossbar (C) in the lowered position.

Raising ROPS Crossbar

1. Remove spring locking pins (A) and drilled pins (B) on each side of the ROPS.

2. Carefully raise ROPS crossbar (C) to the operating position.

3. Align crossbar bracket holes with support bracket holes on each side of the ROPS.

4. Install drilled pins (B) and spring locking pins (A) to lock crossbar (C) in the raised position.
