HVAC Temperature Control

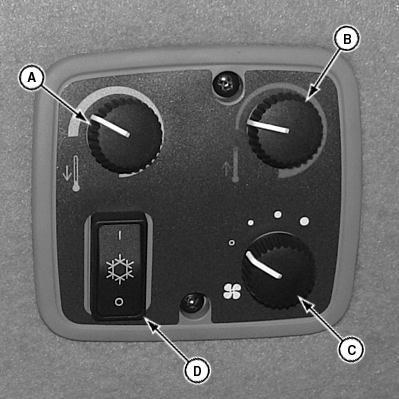

LV17722-UN-07MAY13

A - Air Conditioner Temperature Control Knob

B - Heater Temperature Control Knob

C - Blower Speed Knob

D - Defrost Switch

Push top half of defrost switch (D) to turn air conditioning and deicing ON, and push bottom half to turn it OFF.

Turn air conditioner temperature control knob (A) to adjust air conditioning temperature.

Turn heater temperature control knob (B) to adjust heater temperature.

Turn blower speed knob (C) to adjust blower speed.
