Defrost Windshield and Side Glass

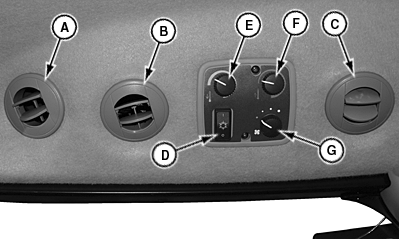

LV17723-UN-07MAY13

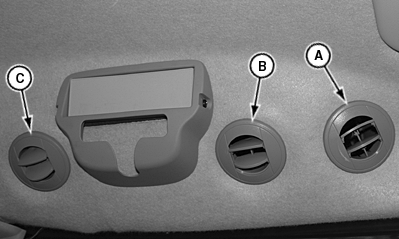

LV17724-UN-07MAY13

A - Front Vents

B - Middle Vents

C - Rear Vents

D - Defrost Switch

E - Air Conditioner Temperature Control Knob

F - Heater Temperature Control Knob

G - Blower Speed Knob

1. Aim two front vents (A) toward windshield.

2. Aim middle vent (B) toward side window.

   NOTE: Closing middle and rear vents helps clear windshield faster.

3. Press top half of defrost switch (D) and turn air conditioner temperature control knob (E) to full counterclockwise position.

4. Turn heater temperature control knob (F) clockwise to obtain desired temperature.

5. Adjust blower speed knob (G) to desired speed.
